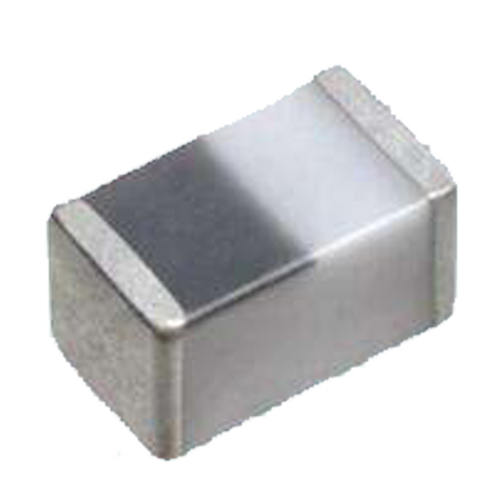

片式陶瓷高频电感
Part Number
Min. Quality Factor L,Q Test Freq. L/Q Typical Q @ Freq. (MHz) Min.
Max. Rated Current
Inductance Self-resonant Max. DC Resistance




Frequency

100 800 1000

Units nH - MHz - MHz Ω mA
Symbol L Q Freq Q S.R.F DCR Ir
AMCI1005C0N6□T 0.6 4 100 6 35 41 10000 0.1 800
AMCI1005C1N0□T 1 8 100 11 34 36 10000 0.1 400
AMCI1005C1N1□T 1.1 8 100 11 34 36 10000 0.1 400
AMCI1005C1N2□T 1.2 8 100 11 34 36 10000 0.1 400
AMCI1005C1N3□T 1.3 8 100 11 34 36 10000 0.1 400
AMCI1005C1N5□T 1.5 8 100 11 34 36 6000 0.1 300
AMCI1005C1N6□T 1.6 8 100 11 32 35 6000 0.1 300
AMCI1005C1N8□T 1.8 8 100 11 30 34 6000 0.1 300
AMCI1005C2N0□T 2 8 100 10 29 33 6000 0.2 300
AMCI1005C2N2□T 2.2 8 100 10 29 33 6000 0.2 300
AMCI1005C2N4□T 2.4 8 100 10 29 32 6000 0.2 300
AMCI1005C2N7□T 2.7 8 100 10 29 32 6000 0.2 300
AMCI1005C3N0□T 3 8 100 10 29 32 6000 0.2 300
AMCI1005C3N3□T 3.3 8 100 10 29 32 6000 0.2 300
AMCI1005C3N6□T 3.6 8 100 10 28 31 4000 0.2 300
AMCI1005C3N9□T 3.9 8 100 10 28 31 4000 0.2 300
AMCI1005C4N3□T 4.3 8 100 10 28 31 4000 0.2 300
AMCI1005C4N7□T 4.7 8 100 10 28 31 4000 0.2 300
AMCI1005C5N1□T 5.1 8 100 10 28 30 4000 0.3 300
AMCI1005C5N6□T 5.6 8 100 10 28 30 4000 0.3 300
AMCI1005C6N2□T 6.2 8 100 10 27 30 3900 0.3 300
AMCI1005C6N8□T 6.8 8 100 10 27 30 3900 0.3 300
AMCI1005C7N5□T 7.5 8 100 10 27 30 3700 0.4 300
AMCI1005C8N2□T 8.2 8 100 10 27 30 3600 0.4 300
AMCI1005C9N1□T 9.1 8 100 10 27 30 3400 0.4 300
AMCI1005C10N□T 10 8 100 10 27 30 3200 0.4 300
AMCI1005C12N□T 12 8 100 10 26 29 2700 0.5 300
AMCI1005C15N□T 15 8 100 10 26 28 2300 0.5 300
AMCI1005C18N□T 18 8 100 10 25 27 2100 0.6 300
AMCI1005C20N□T 20 8 100 10 25 26 2000 0.6 300
AMCI1005C22N□T 22 8 100 10 25 25 1900 0.6 300
AMCI1005C27N□T 27 8 100 10 25 23 1600 0.7 300
AMCI1005C33N□T 33 8 100 10 22 22 1300 0.8 200
AMCI1005C39N□T 39 8 100 10 22 19 1200 1 200
AMCI1005C43N□T 43 8 100 10 21 16 1100 1.1 200
AMCI1005C47N□T 47 8 100 10 21 16 1000 1.1 200
AMCI1005C56N□T 56 8 100 10 18 13 750 1.2 200
AMCI1005C68N□T 68 8 100 10 18 9 750 1.4 180
AMCI1005C82N□T 82 8 100 10 13 - 750 2.4 150
AMCI1005CR10□T 100 8 100 10 12 - 700 2.6 150
AMCI1005CR12□T 120 8 100 10 - - 600 2.8 150
AMCI1005CR15□T 150 8 100 10 - - 550 3.2 100
AMCI1005CR18□T 180 8 100 10 - - 500 3.7 100
AMCI1005CR22□T 220 8 100 12 - - 450 4 100
AMCI1005CR27□T 270 8 100 12 - - 400 4.5 100
AMCI1005CR30□T 300 8 100 12 - - 400 4.5 100
AMCI1005CR33□T 330 6 50 8 - - 350 7 50
AMCI1005CR36□T 360 6 50 8 - - 300 7.5 50
※□: Please specify the inductance tolerance. For L≤6.2nH, choose A=±0.1nH, B=±0.2nH or C=±0.3nH; For L>6.2nH,
choose E=±3%, F=±5% or G=±10%.


Min. Quality Factor L,Q Test Typical Q @ Freq. (MHz) Min.
Max. Rated Current


Freq. L/Q
Self-resonant Max. DC Resistance
Part Number Inductance


Frequency


100 800 1000

Units nH - MHz - MHz Ω mA
Symbol L Q Freq Q S.R.F DCR Ir
AMCI1608C1N0CT 1.0±0.3 8 100 13 70 80 10000 0.05 500
AMCI1608C1N2CT 1.2±0.3 8 100 13 60 70 10000 0.05 500
AMCI1608C1N5CT 1.5±0.3 8 100 13 47 68 6000 0.1 500
AMCI1608C1N8CT 1.8±0.3 8 100 13 45 61 6000 0.1 500
AMCI1608C2N2CT 2.2±0.3 8 100 13 45 60 6000 0.1 500
AMCI1608C2N7CT 2.7±0.3 10 100 13 44 55 6000 0.12 500
AMCI1608C3N3CT 3.3±0.3 10 100 13 43 50 6000 0.15 500
AMCI1608C3N9CT 3.9±0.3 10 100 13 43 50 6000 0.16 500
AMCI1608C4N7CT 4.7±0.3 10 100 13 43 50 6000 0.2 500
AMCI1608C5N6CT 5.6±0.3 10 100 14 42 48 5000 0.25 500
AMCI1608C6N8□T 6.8 10 100 14 43 50 5000 0.3 500
AMCI1608C8N2□T 8.2 10 100 14 43 48 4500 0.35 500
AMCI1608C10N□T 10 12 100 15 45 50 3500 0.4 300
AMCI1608C12N□T 12 12 100 18 48 50 3000 0.45 300
AMCI1608C15N□T 15 12 100 18 48 50 2300 0.5 300
AMCI1608C18N□T 18 12 100 16 48 51 2200 0.55 300
AMCI1608C22N□T 22 12 100 16 45 48 2000 0.6 300
AMCI1608C27N□T 27 12 100 16 45 45 1700 0.65 300
AMCI1608C33N□T 33 12 100 16 45 41 1500 0.7 300
AMCI1608C39N□T 39 12 100 17 40 48 1400 0.7 300
AMCI1608C47N□T 47 12 100 17 35 35 1200 0.7 300
AMCI1608C56N□T 56 12 100 17 35 30 1100 0.75 300
AMCI1608C68N□T 68 12 100 17 30 20 900 0.85 300
AMCI1608C82N□T 82 8 100 15 22 - 800 1 300
AMCI1608CR10□T 100 8 100 15 16 - 700 1.2 300
AMCI1608CR12□T* 120 8 50 15 - - 600 1.4 200
AMCI1608CR15□T* 150 8 50 15 - - 500 1.6 200
AMCI1608CR18□T* 180 8 50 15 - - 400 1.9 200
AMCI1608CR22□T* 220 8 50 15 - - 350 2.4 200
AMCI1608CR27□T* 270 8 50 16 - - 350 2.6 150
AMCI1608CR33□T* 330 8 50 16 - - 350 2.8 150
AMCI1608CR39□T* 390 8 50 16 - - 300 3.2 150
AMCI1608CR43□T* 430 8 50 16 - - 280 3.4 150
AMCI1608CR47□T* 470 8 50 15 - - 250 3.6 150
AMCI1608CR56□T* 560 8 50 15 - - 250 4 100
AMCI1608CR68□T* 680 8 50 15 - - 250 4.5 100
※□: Please specify the inductance tolerance code (F=±5%, G=±10%). The product with tolerance less than ±F%, ±G% is
also available. Please contact your local sales.
※*: The length: 1.65±0.15mm, for others: 1.60±0.15mm


Min. Quality Factor L,Q Test Freq. L/Q Typical Q @ Freq. (MHz) Min.
Max. Rated Current
Part Number Inductance Self-resonant Max. DC Resistance





Frequency


100 800 1000

Units nH - MHz - MHz Ω mA
Symbol L Q Freq Q S.R.F DCR Ir
AMCI1005C0N6□T 0.6 4 100 6 35 41 10000 0.1 800
AMCI1005C1N0□T 1 8 100 11 34 36 10000 0.1 400
AMCI1005C1N1□T 1.1 8 100 11 34 36 10000 0.1 400
AMCI1005C1N2□T 1.2 8 100 11 34 36 10000 0.1 400
AMCI1005C1N3□T 1.3 8 100 11 34 36 10000 0.1 400
AMCI1005C1N5□T 1.5 8 100 11 34 36 6000 0.1 300
AMCI1005C1N6□T 1.6 8 100 11 32 35 6000 0.1 300
AMCI1005C1N8□T 1.8 8 100 11 30 34 6000 0.1 300
AMCI1005C2N0□T 2 8 100 10 29 33 6000 0.2 300
AMCI1005C2N2□T 2.2 8 100 10 29 33 6000 0.2 300
AMCI1005C2N4□T 2.4 8 100 10 29 32 6000 0.2 300
AMCI1005C2N7□T 2.7 8 100 10 29 32 6000 0.2 300
AMCI1005C3N0□T 3 8 100 10 29 32 6000 0.2 300
AMCI1005C3N3□T 3.3 8 100 10 29 32 6000 0.2 300
AMCI1005C3N6□T 3.6 8 100 10 28 31 4000 0.2 300
AMCI1005C3N9□T 3.9 8 100 10 28 31 4000 0.2 300
AMCI1005C4N3□T 4.3 8 100 10 28 31 4000 0.2 300
AMCI1005C4N7□T 4.7 8 100 10 28 31 4000 0.2 300
AMCI1005C5N1□T 5.1 8 100 10 28 30 4000 0.3 300
AMCI1005C5N6□T 5.6 8 100 10 28 30 4000 0.3 300
AMCI1005C6N2□T 6.2 8 100 10 27 30 3900 0.3 300
AMCI1005C6N8□T 6.8 8 100 10 27 30 3900 0.3 300
AMCI1005C7N5□T 7.5 8 100 10 27 30 3700 0.4 300
AMCI1005C8N2□T 8.2 8 100 10 27 30 3600 0.4 300
AMCI1005C9N1□T 9.1 8 100 10 27 30 3400 0.4 300
AMCI1005C10N□T 10 8 100 10 27 30 3200 0.4 300
AMCI1005C12N□T 12 8 100 10 26 29 2700 0.5 300
AMCI1005C15N□T 15 8 100 10 26 28 2300 0.5 300
AMCI1005C18N□T 18 8 100 10 25 27 2100 0.6 300
AMCI1005C20N□T 20 8 100 10 25 26 2000 0.6 300
AMCI1005C22N□T 22 8 100 10 25 25 1900 0.6 300
AMCI1005C27N□T 27 8 100 10 25 23 1600 0.7 300
AMCI1005C33N□T 33 8 100 10 22 22 1300 0.8 200
AMCI1005C39N□T 39 8 100 10 22 19 1200 1 200
AMCI1005C43N□T 43 8 100 10 21 16 1100 1.1 200
AMCI1005C47N□T 47 8 100 10 21 16 1000 1.1 200
AMCI1005C56N□T 56 8 100 10 18 13 750 1.2 200
AMCI1005C68N□T 68 8 100 10 18 9 750 1.4 180
AMCI1005C82N□T 82 8 100 10 13 - 750 2.4 150
AMCI1005CR10□T 100 8 100 10 12 - 700 2.6 150
AMCI1005CR12□T 120 8 100 10 - - 600 2.8 150
AMCI1005CR15□T 150 8 100 10 - - 550 3.2 100
AMCI1005CR18□T 180 8 100 10 - - 500 3.7 100
AMCI1005CR22□T 220 8 100 12 - - 450 4 100
AMCI1005CR27□T 270 8 100 12 - - 400 4.5 100
AMCI1005CR30□T 300 8 100 12 - - 400 4.5 100
AMCI1005CR33□T 330 6 50 8 - - 350 7 50
AMCI1005CR36□T 360 6 50 8 - - 300 7.5 50
※□: Please specify the inductance tolerance. For L≤6.2nH, choose A=±0.1nH, B=±0.2nH or C=±0.3nH; For L>6.2nH,
choose E=±3%, F=±5% or G=±10%.


Min. Quality Factor L,Q Test Typical Q @ Freq. (MHz) Min.
Max. Rated Current


Freq. L/Q
Self-resonant Max. DC Resistance
Part Number Inductance


Frequency


100 800 1000

Units nH - MHz - MHz Ω mA
Symbol L Q Freq Q S.R.F DCR Ir
AMCI1608C1N0CT 1.0±0.3 8 100 13 70 80 10000 0.05 500
AMCI1608C1N2CT 1.2±0.3 8 100 13 60 70 10000 0.05 500
AMCI1608C1N5CT 1.5±0.3 8 100 13 47 68 6000 0.1 500
AMCI1608C1N8CT 1.8±0.3 8 100 13 45 61 6000 0.1 500
AMCI1608C2N2CT 2.2±0.3 8 100 13 45 60 6000 0.1 500
AMCI1608C2N7CT 2.7±0.3 10 100 13 44 55 6000 0.12 500
AMCI1608C3N3CT 3.3±0.3 10 100 13 43 50 6000 0.15 500
AMCI1608C3N9CT 3.9±0.3 10 100 13 43 50 6000 0.16 500
AMCI1608C4N7CT 4.7±0.3 10 100 13 43 50 6000 0.2 500
AMCI1608C5N6CT 5.6±0.3 10 100 14 42 48 5000 0.25 500
AMCI1608C6N8□T 6.8 10 100 14 43 50 5000 0.3 500
AMCI1608C8N2□T 8.2 10 100 14 43 48 4500 0.35 500
AMCI1608C10N□T 10 12 100 15 45 50 3500 0.4 300
AMCI1608C12N□T 12 12 100 18 48 50 3000 0.45 300
AMCI1608C15N□T 15 12 100 18 48 50 2300 0.5 300
AMCI1608C18N□T 18 12 100 16 48 51 2200 0.55 300
AMCI1608C22N□T 22 12 100 16 45 48 2000 0.6 300
AMCI1608C27N□T 27 12 100 16 45 45 1700 0.65 300
AMCI1608C33N□T 33 12 100 16 45 41 1500 0.7 300
AMCI1608C39N□T 39 12 100 17 40 48 1400 0.7 300
AMCI1608C47N□T 47 12 100 17 35 35 1200 0.7 300
AMCI1608C56N□T 56 12 100 17 35 30 1100 0.75 300
AMCI1608C68N□T 68 12 100 17 30 20 900 0.85 300
AMCI1608C82N□T 82 8 100 15 22 - 800 1 300
AMCI1608CR10□T 100 8 100 15 16 - 700 1.2 300
AMCI1608CR12□T* 120 8 50 15 - - 600 1.4 200
AMCI1608CR15□T* 150 8 50 15 - - 500 1.6 200
AMCI1608CR18□T* 180 8 50 15 - - 400 1.9 200
AMCI1608CR22□T* 220 8 50 15 - - 350 2.4 200
AMCI1608CR27□T* 270 8 50 16 - - 350 2.6 150
AMCI1608CR33□T* 330 8 50 16 - - 350 2.8 150
AMCI1608CR39□T* 390 8 50 16 - - 300 3.2 150
AMCI1608CR43□T* 430 8 50 16 - - 280 3.4 150
AMCI1608CR47□T* 470 8 50 15 - - 250 3.6 150
AMCI1608CR56□T* 560 8 50 15 - - 250 4 100
AMCI1608CR68□T* 680 8 50 15 - - 250 4.5 100
※□: Please specify the inductance tolerance code (F=±5%, G=±10%). The product with tolerance less than ±F%, ±G% is
also available. Please contact your local sales.
※*: The length: 1.65±0.15mm, for others: 1.60±0.15mm
